Executive Summary

Pattern Monitoring in Aluminum Die Casting and Precision Machining
From Tactical Rules to Strategic Blueprint

Context
Aluminum die casting and precision machining floors run at very narrow margins. Seconds lost in changeovers or inspections compound into hours of lost throughput. Traditional monitoring has relied on tactical rules: checking for personal protective equipment, flagging forklifts in restricted lanes, or alerting when presses stall. These rules deliver quick safety wins but plateau quickly. They answer “what just happened” but not “why it keeps happening” or “what needs to change.”

Strategic Pattern Monitoring
Strategic monitoring shifts the focus from events to patterns. Instead of isolated alerts, managers examine flows of people, machines, materials, and finished goods over time. The process is iterative:

1. Establish a baseline of normal activity.
2. Highlight deviations with heatmaps and timelines.
3. Review deviations with operators.
4. Adjust baselines for harmless events, flag true issues.
5. Link flagged issues to operational fixes.
6. Repeat until a blueprint of expected good posture emerges.

Case Vignette One: Die Casting Floor
Heatmaps revealed crowding at quench tanks during shift changes. Castings queued, operators handled parts multiple times, presses idled, and scrap rose. The root cause was mold changeover scheduling. Adjusting preheat cycles and adding staging carts cut idle time by thirty percent, reduced ergonomic risk, and lowered scrap by twelve percent.

Case Vignette Two: Precision Machining Line
Inspection benches showed recurring queues. Operators batched inspections, creating surges that stalled machining bays. Staggered inspection protocols and a second gauge bench reduced crowding by seventy percent and improved cycle time per part by eight percent.

Operational Challenges
Strategic monitoring is harder than tactical rule setting. Baselines shift with demand and operator behavior. Machines bring variability through downtime and maintenance. Materials fluctuate with order volume. Finished goods create irregular inspection loads. Success depends on iteration and review, not one-time configuration.

Blueprint of Good Operations Posture
Over time the plant codifies expected thresholds:

• People: maximum headcount per zone, average dwell at inspections.
• Machines: acceptable cycle times, limits on micro stoppages.
• Materials: staging dwell limits, scrap thresholds.
• Finished goods: inspection dwell before packaging, shipment queue limits.

This blueprint becomes a strategic asset. Supervisors use it to manage shifts. Executives use it to justify investments. Operators use it to balance work without blame.

Lessons and Payoffs

• Tactical rules are necessary but not sufficient.
• Iteration builds trust and reduces noise.
• Evidence convinces finance and executives.
• Four-dimensional monitoring unites people, machines, materials, and finished goods.
• The payoff is resilience: safer conditions, higher utilization, less waste, more reliable deliveries.

Next Step for Leaders
Start with a thirty-day baseline audit. Track deviations. Review them with operators. Adjust or flag. Link every flagged deviation to an operational fix. Repeat until a blueprint emerges. This blueprint is the foundation for continuous improvement, evidence-based investment, and long term competitiveness.

‍

A Case Study on People, Machines, Materials, and Finished Goods

1. Introduction: From Rules to Patterns

Manufacturing floors in aluminum die casting and precision machining operate at the edge of efficiency. Margins are tight, output expectations are high, and even minor disruptions ripple across the value chain. Seconds lost during die changes or inspection queues translate into hours of cumulative downtime. Small deviations in material handling compound into late shipments. Safety lapses trigger costly interventions.

For many years operators have relied on tactical monitoring. These are rule based checks that provide assurance in the moment. Examples include asking if the operator is wearing personal protective equipment, whether the furnace door is closed, or whether the forklift crossed into a restricted zone. These rules are simple to configure and immediately useful. They provide visibility into specific events and create a baseline culture of compliance.

However tactical monitoring has limitations. Rules can only answer the question “what just happened.” They cannot explain why incidents repeat, why bottlenecks persist, or how to reallocate resources to prevent recurrence. Rules are inherently reactive and not strategic.

Strategic pattern monitoring takes a broader view. Instead of treating events in isolation, it examines flows and deviations over time. How many people typically crowd near a trimming press. How long does material wait at quench tanks. Which machining bays consistently develop inspection queues. And most importantly, what operational fixes will eliminate these inefficiencies at their root.

This case study explores how pattern monitoring transforms the shop floor using aluminum die casting and precision machining as exemplars. We focus on four dimensions—people, machines, materials, and finished goods—to show how tactical monitoring evolves into a strategic blueprint for safe, efficient, and predictable operations.

2. Tactical Monitoring: Strengths and Limits

The starting point: rules that work
Every plant begins its journey with tactical monitoring. Rules are straightforward to define, easy to explain to operators, and simple to enforce. In a die casting or machining environment common tactical rules include:

• People: detecting personal protective equipment violations at molten metal handling stations, identifying unsafe proximity to die casting presses
• Machines: alerting when a furnace shows excess smoke, flagging a stalled trimming press, signaling a machining cycle interrupted mid operation
• Materials: spotting spilled metal near furnaces, flagging carts blocking main aisles, counting scrap accumulating beyond defined thresholds
• Finished goods: confirming that every part passes through inspection, alerting when boxed goods remain unshipped for longer than planned

These rules deliver immediate impact. Safety incidents decline, regulatory compliance improves, and operators see quick wins. For managers tactical monitoring establishes a foundation of accountability.

Why tactical alone falls short
Over time tactical monitoring shows its limits. Three challenges recur across die casting and machining floors.

1. Alert fatigue
   When dozens of rules trigger multiple times per shift operators tune them out. For example, a forklift crossing a sensor line during every delivery creates noise rather than insight.
2. Lack of context
   Rules provide binary answers—helmet present or absent, aisle blocked or clear—but fail to capture the broader workflow. They do not explain whether repeated violations stem from poor training, flawed layouts, or upstream bottlenecks.
3. Missed systemic issues
   Most importantly tactical monitoring cannot reveal systemic inefficiencies. A recurring dwell at the quench tank may be logged as separate alerts, but without pattern analysis no one connects the dots to mold changeover delays.

The result is that shops continue to solve problems tactically, incident by incident, while underlying inefficiencies remain hidden.

‍

3. From Rules to Patterns: Why the Shift Matters

Strategic pattern monitoring addresses these gaps by moving beyond single rules and focusing on patterns that emerge across shifts, days, and weeks. The process is multi step and requires iteration.

Baseline ambiguity
The first challenge is to define what normal looks like. Is twelve people near a trimming press a problem, or is it the usual headcount during a shift change. Without establishing a baseline every deviation looks like a problem.

Iterative adjustment
Once a baseline is set, deviations can be highlighted in heatmaps. These deviations are reviewed with operators. Some will be harmless and can be absorbed into the new baseline. Others represent genuine risks or inefficiencies and must be flagged. Over time the cycle repeats and baselines are refined until meaningful patterns emerge.

Deviation to operational fix
Every identified deviation should drive a business response. A recurring dwell near the quench tank, for example, may indicate that mold changeover schedules are out of sync. The insight is not complete until it translates into an operational fix.

Blueprint creation
After multiple iterations leaders can design a blueprint of expected good operations posture for the entire floor plan. This blueprint establishes what safe, efficient, and predictable looks like across people, machines, materials, and finished goods.

Simple to complex monitored values
Monitoring can begin with simple values such as maximum people in a zone per hour, average dwell at an inspection bench, or total presence in an aisle during a shift. Over time the analysis can evolve into combinational logic. This may include people plus machine motion, people plus objects, or objects plus process steps.

Strategic monitoring is therefore a living cycle. Baseline, deviation, review, fix, and new baseline. With each iteration the floor moves closer to a reliable and proven blueprint that captures how operations should run across every dimension.

‍

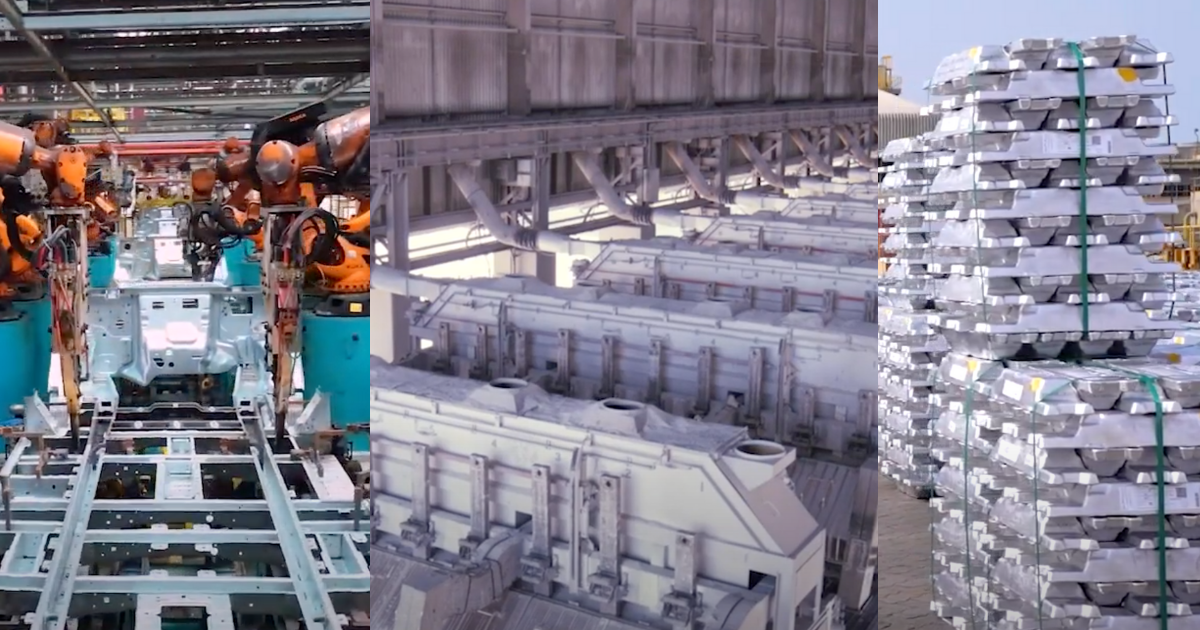

4. Case Outline One: Aluminum Die Casting Floor

Context
An aluminum die casting facility runs twenty four hours a day with three shifts. The floor combines heavy furnaces, automated presses, trimming stations, quench tanks, and finishing areas. The plant’s tactical monitoring already included basic personal protective equipment checks, smoke detection, and forklift alerts. Safety compliance improved, but managers still faced unexplained downtime and irregular output.

Baseline establishment
The first step in pattern monitoring was to map people, machines, materials, and finished goods across the floor plan. Heatmaps revealed average presence near furnaces, trimming presses, and quench tanks. For the first month the system collected data without intervention. Baseline values emerged: average five operators present in furnace zones, ten to twelve near trimming presses, and consistent dwell of four minutes at quench tanks.

Deviation discovery
Deviations began to surface. Heatmaps highlighted crowding near quench tanks at the end of every shift. Operators remained in the area fifteen to twenty minutes beyond the baseline average. Finished goods piled up waiting for inspection, and trimming presses idled as castings backed up.

Root cause analysis
Review with supervisors showed the cause was mold changeover scheduling. When molds were swapped at the end of a cycle, castings accumulated at quench tanks. Operators waited idly, handling castings multiple times. This created ergonomic strain, raised safety risks, and increased scrap from mishandled parts.

Operational fix
Leaders adjusted mold preheat schedules so that new molds were ready before the changeover. They added cart staging space to absorb excess castings. Supervisors also rotated operators to reduce manual handling during peak times.

Results

• People: reduced unnecessary handling lowered risk of ergonomic injury. Idle time at quench tanks dropped by thirty percent.
• Machines: trimming press utilization improved as castings arrived in steady flow rather than irregular bursts.
• Materials: scrap from mishandled hot castings fell by twelve percent.
• Finished goods: throughput stabilized and end of shift inspection queues shortened by half.

Iteration cycle
The baseline was updated to reflect the new mold schedule. Monitoring continued and further deviations were tracked. Over several months, a new blueprint of expected operations posture emerged: maximum eight operators in quench zones, average dwell of five minutes, and continuous flow of castings to trimming and inspection.

Strategic impact
What began as tactical safety checks evolved into a strategic planning tool. Managers could demonstrate with evidence that scheduling changes reduced downtime, scrap, and safety risk. The blueprint informed staffing plans, capital investment in carts, and training for new hires.

‍

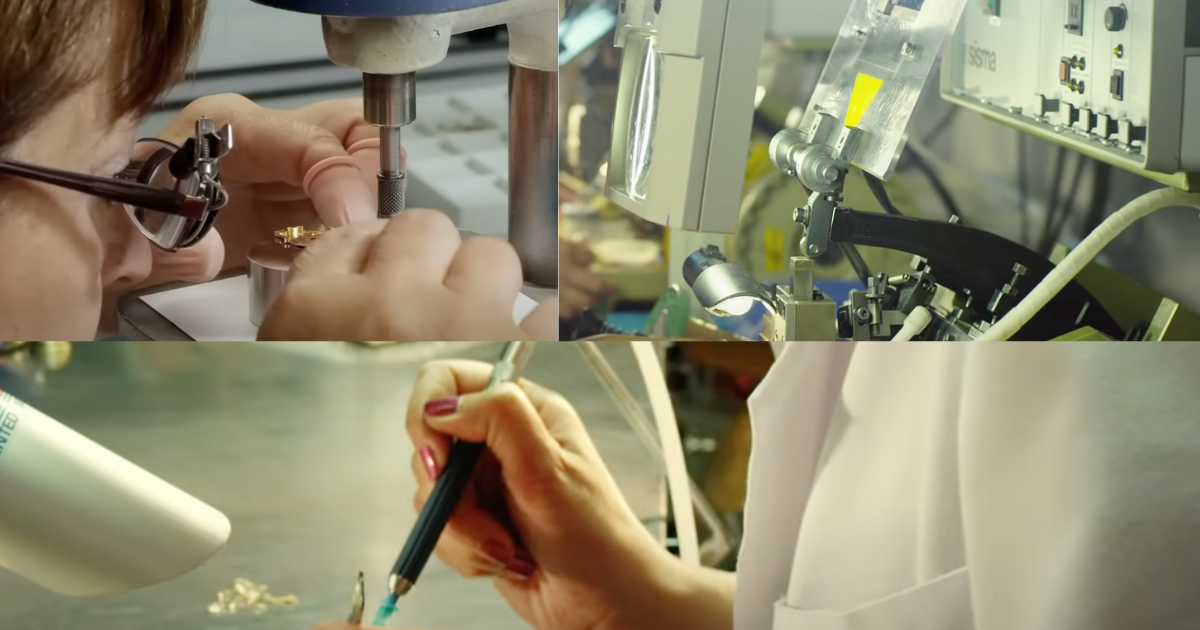

5. Case Outline Two: Precision Machining Line

Context
Downstream from die casting, precision machining turns raw castings into finished components. This floor contained multiple machining bays, gauge benches for quality checks, and inspection stations before packaging. Tactical monitoring ensured that operators wore protective equipment, that machines did not stall, and that forklifts respected lanes. Despite this, output remained uneven and inspection created recurring bottlenecks.

Baseline establishment
Pattern monitoring was introduced to measure operator distribution and workflow. Initial data showed an average of six operators across machining bays. Heatmaps revealed normal flows of materials from casting delivery through machining and toward inspection.

Deviation discovery
After several weeks, deviations appeared at gauge benches. Heatmaps showed crowding of nine to ten operators in inspection areas, especially during mid shift. Average dwell times doubled compared to baseline. Finished goods waited in carts as operators queued for a single gauge bench. Machines stood idle while workers waited for clearance.

Root cause analysis
Discussion with line leads uncovered batching behavior. Operators delayed inspection until multiple parts were complete, then moved together to the gauge bench. This behavior was reinforced by habit and by the convenience of one central inspection point.

Operational fix
Leaders introduced staggered inspection protocols. Operators were instructed to submit parts in smaller increments rather than in bulk. A second gauge station was relocated closer to machining bays to reduce travel and congestion. Supervisors coached operators to maintain continuous flow rather than periodic surges.

Results

• People: balanced workload reduced idle waiting and frustration. Crowding at inspection benches dropped by seventy percent.
• Machines: cycle time per part improved by eight percent as machines no longer paused while operators queued.
• Materials: work in progress moved smoothly through bays without clustering.
• Finished goods: throughput rose and consistency of quality inspection improved, reducing rework.

Iteration cycle
The baseline for inspection dwell was updated. Deviations continued to be monitored. New patterns showed occasional spikes when large orders converged, prompting further refinements in staffing schedules.

Strategic impact
The evidence demonstrated to executives that a small operational change, staggered inspection and relocation of a gauge bench delivered measurable improvement. Managers could now argue for targeted investment in additional gauge capacity. The blueprint established for inspection flow became part of broader continuous improvement across machining lines.

‍

6. Operational Challenges of Strategic Monitoring

Strategic pattern monitoring is powerful but not straightforward. Plants that begin this journey quickly realize that while rules are easy to configure, patterns are complex to define. Establishing what is normal across people, machines, materials, and finished goods requires patience, iteration, and alignment between supervisors and operators.

Rule setting is simple
In tactical monitoring a rule is binary. A worker is either wearing personal protective equipment or not. A forklift either crosses a restricted line or not. A press either stops mid cycle or continues. These rules are clear and require minimal interpretation.

Pattern definition is hard
Strategic monitoring asks a deeper question: what does good look like over time. Defining normal patterns requires an iterative multi step process.

1. Understand your baseline
   The first step is to let the system observe without intervention. It measures how many people usually crowd in front of a furnace, how long materials typically dwell in aisles, how machines normally cycle, and how finished goods move through inspection. This initial baseline is often messy but provides the first approximation of reality.
2. Highlight deviations
   Once a baseline is established, deviations can be visualized through heatmaps and timelines. These highlight areas of unusual crowding, extended dwell, or irregular machine cycles. The visualization does not declare something good or bad but prompts review.
3. Review with operators
   Operators and supervisors must examine deviations. Some may be non issues. A sudden crowd at a trimming station might simply reflect a training session. In that case the baseline is adjusted. Other deviations reveal true inefficiencies or risks. For example, repeated dwell of finished goods near packaging may expose a bottleneck in outbound logistics.
4. Flag and act
   Deviations judged to be meaningful are flagged for corrective action. This is where strategic monitoring links directly to operations management. A crowd at a quench tank might require schedule adjustments. A recurring backlog of materials might need more carts or better staging areas.
5. Iteration and learning
   Each cycle informs the next. Baselines are refined, deviations are contextualized, and operational fixes are validated. Over time the plant develops a reliable map of what good operations posture should look like across the entire floor.

Why this is hard in practice

• People: Variability in shifts, training levels, and informal workarounds makes baselines less stable.
• Machines: Maintenance schedules and unexpected downtime can distort patterns.
• Materials: Demand variability creates inconsistent flows that challenge baselines.
• Finished goods: Customer order surges create irregular inspection and shipping patterns.

The challenge is not to eliminate variability but to understand it. Strategic monitoring does not seek a rigid definition of normal. Instead it builds a flexible blueprint that can adapt to real world conditions while still flagging meaningful deviations.

‍

7. Building a Blueprint for Operations Posture

The ultimate goal of strategic pattern monitoring is to create a blueprint of expected good operations posture. This blueprint is not a static document but a living model of how the floor should function under normal conditions. It covers the entire system—people, machines, materials, and finished goods and establishes measurable thresholds that guide both daily supervision and long term planning.

People blueprint

• Maximum number of operators in each zone per hour.
• Average dwell time at inspection benches.
• Balance of operators across machining bays.
• Safety posture for high risk tasks such as molten metal handling.

Machines blueprint

• Expected cycle times for presses and machining bays.
• Acceptable variance in micro stoppages.
• Utilization thresholds that distinguish between healthy operations and early signs of bottlenecks.
• Integration points with signals such as stack lights or maintenance alerts.

Materials blueprint

• Standard dwell times at quench tanks, trimming areas, and staging lanes.
• Expected flow of carts between stations.
• Maximum acceptable accumulation of scrap before intervention.
• Evidence requirements for tracing material flow during audits.

Finished goods blueprint

• Acceptable dwell between inspection and packaging.
• Maximum queue time before shipment.
• Balance between quality assurance capacity and machining throughput.
• Triggers for reallocating inspectors or adding temporary resources.

Benefits of a blueprint

1. Clarity for supervisors
   Instead of reacting to scattered alerts, supervisors monitor against defined thresholds. This provides a simple scorecard for each shift.
2. Evidence for executives
   Heatmaps, timelines, and before and after comparisons give leaders proof that operational changes deliver measurable results. Investment decisions are based on data rather than anecdote.
3. Alignment across teams
   Operators, supervisors, maintenance, and logistics all work from the same reference. This reduces blame and creates shared accountability.
4. Foundation for continuous improvement
   The blueprint evolves with every iteration. As new materials are introduced, as machines are upgraded, and as finished goods change, the blueprint adapts. Strategic monitoring ensures the model stays current.

Example of a floor wide blueprint
In one plant the blueprint set thresholds such as:

• No more than eight operators in quench zones per hour.
• Average trimming press utilization above ninety percent.
• Scrap accumulation not exceeding two bins per shift.
• Finished goods inspection dwell under one hour.

With this blueprint supervisors could see deviations immediately, act quickly, and show measurable impact at weekly reviews. Executives used the evidence to justify investment in additional staging carts and a second inspection station.

‍

8. Lessons Learned and Strategic Payoffs

Strategic pattern monitoring does more than reduce alerts. It reshapes how organizations think about supervision and improvement. The experience across aluminum die casting and precision machining floors shows several lessons that apply broadly to any industrial operation.

Lesson one: tactical wins are necessary but not sufficient
Rules that detect missing protective equipment, blocked aisles, or stalled machines are valuable. They provide the quick confidence operators need and create an immediate culture of compliance. However, leaders must recognize that these tactical wins plateau. Without the next step toward patterns, alerts become repetitive noise and do not deliver further improvement.

Lesson two: iteration builds trust
Operators are skeptical when monitoring systems are introduced. They fear blame or excessive oversight. Strategic pattern monitoring reduces this tension by focusing on evidence and iteration. Deviations are not automatically treated as errors. They are reviewed with context. When operators see that harmless deviations are absorbed into the baseline, they recognize that the system is fair. Trust grows when the monitoring highlights issues that supervisors fix rather than punish.

Lesson three: evidence converts skeptics
Executives and finance leaders demand proof before investing in new systems or processes. Strategic monitoring provides that proof in the form of heatmaps, dwell charts, and before and after comparisons. When a plant shows that idle time fell by eleven percent or that rework declined after inspection changes, leaders shift from doubt to support. Evidence is the currency that moves improvement from concept to budget.

Lesson four: four dimensional view delivers clarity
Looking only at people misses machine cycle irregularities. Watching only machines ignores material queues. Tracking only materials hides delays in finished goods. A blueprint that unites people, machines, materials, and finished goods is the only way to understand the floor as a system. Each dimension reinforces the others. For example, a queue of materials might initially look like a supply problem, but analysis shows it began with a mismatch in people allocation to machines.

Lesson five: strategic monitoring creates long term resilience
Markets fluctuate, demand surges, and customer expectations shift. Plants that rely only on tactical rules constantly chase the latest incident. Plants that build a blueprint can adapt with confidence. When order volume increases, supervisors already know which areas can absorb more people and which machines require redundancy. When demand falls, leaders can decide where to consolidate shifts without compromising safety or quality.

Strategic payoffs

• People: Safer conditions, better balance of work, reduced fatigue.
• Machines: Higher utilization, fewer unplanned stoppages, smoother maintenance planning.
• Materials: Reduced scrap, more predictable staging, faster movement through processes.
• Finished goods: Shorter dwell between inspection and shipment, more reliable delivery promises, stronger customer trust.

The combined payoff is not simply lower incident counts but a more resilient operation that can plan strategically, justify investments, and continuously improve.

9. Checklist for Leaders

Leaders who want to move from tactical monitoring to strategic pattern monitoring can begin with a simple checklist. Each step should be completed in order, with iteration built into the process.

Step one: define tactical goals
Start by documenting the tactical rules currently in place. Examples include protective equipment detection, smoke alerts, or blocked aisle notifications. Clarify what problems these rules solve and where they fall short.

Step two: establish baselines
Let the system collect data for several weeks without intervention. Capture metrics across people, machines, materials, and finished goods. Record averages, peaks, and totals. Do not rush to judge anomalies at this stage.

Step three: visualize deviations
Use heatmaps and timelines to highlight deviations from the baseline. Share these visuals with supervisors and operators to begin the review process.

Step four: review and adjust
Classify each deviation. If it is harmless, adjust the baseline. If it is meaningful, flag it for further analysis. This step creates the discipline of iteration and prevents the system from generating noise.

Step five: link deviations to fixes
Translate flagged deviations into operational changes. Adjust schedules, add staging, move inspection stations, or reallocate staff. Record the fix and measure the before and after impact.

Step six: codify a blueprint
Once several cycles are complete, create a blueprint of expected good operations posture. Include thresholds for each of the four dimensions. Share the blueprint across teams to align expectations.

Step seven: expand to combinational logic
Move beyond simple counts and dwell times. Introduce rules that combine dimensions, such as people plus machine motion or materials plus process step. This raises the sophistication of monitoring and surfaces more subtle inefficiencies.

Step eight: institutionalize continuous improvement
Make the blueprint a living document. Update it regularly, incorporate it into shift handovers, and use it during executive reviews. Encourage operators to see deviations not as failures but as opportunities for further refinement.

Sample blueprint targets

• People: Maximum eight operators in any furnace zone per hour.
• Machines: Trimming press utilization above ninety percent.
• Materials: Scrap not exceeding two bins per shift.
• Finished goods: Inspection dwell under one hour before packaging.

By following this checklist leaders can move systematically from tactical rules to strategic insights. The result is a shop floor that not only reacts to incidents but plans for efficiency, safety, and long term resilience.

10. Callout Box: What to Watch This Week

Supervisors and managers can begin applying pattern monitoring by asking a few practical questions each week. These questions guide attention to the areas where deviations most often emerge and ensure that the review cycle remains disciplined.

People

• Are there zones where operator headcount consistently exceeds the expected baseline
• Do inspection benches show recurring queues that extend beyond the average dwell time

Machines

• Which presses or machining bays show cycle times that deviate from baseline
• Are micro stoppages increasing on particular shifts or particular stations

Materials

• Are carts accumulating in aisles longer than expected
• Is scrap generation exceeding the blueprint threshold in specific areas

Finished goods

• Are packaged parts dwelling longer than planned before shipment
• Do inspection stations show evidence of sustained backlog that affects customer delivery

By answering these questions each week leaders maintain focus on the iterative loop of baseline, deviation, review, and fix. Over time these callouts reinforce the discipline of pattern monitoring and embed it into the daily rhythm of operations.

11. Closing: From Tactical Monitoring to Strategic Blueprint

The journey from tactical monitoring to strategic pattern monitoring is not linear and it is not immediate. It requires months of iteration, disciplined review, and operational fixes that link deviations to measurable results. Yet the case of aluminum die casting and precision machining shows that the investment is worthwhile.

Tactical monitoring delivers quick wins and creates the foundation for compliance. Strategic monitoring builds on that base and delivers systemic improvement. The transition requires patience because defining normal patterns across people, machines, materials, and finished goods is complex. But once baselines are established and deviations are iteratively refined, the plant acquires a living blueprint of good operations posture.

This blueprint is more than a technical artifact. It is a strategic asset. It aligns supervisors, operators, maintenance, and logistics around the same evidence. It provides executives with data they can trust when making investment decisions. It demonstrates to customers that delivery commitments are backed by resilient processes. Most importantly, it turns monitoring from a reactive activity into a proactive planning tool.

The lessons are clear. Tactical monitoring answers the question “what happened.” Strategic monitoring answers the questions “why does it keep happening” and “what should we change to prevent it.” The value is visible across all four dimensions.

• People work in safer and more balanced environments.
• Machines run at higher and more predictable utilization.
• Materials flow with less waste and less scrap.
• Finished goods move smoothly from inspection to shipment, improving customer trust.

The payoff is not just in percentage improvements but in organizational resilience. Plants that rely on tactical alerts will always chase incidents. Plants that adopt strategic pattern monitoring will plan with confidence, invest with evidence, and build a culture of continuous improvement.

For leaders in aluminum die casting and precision machining, the message is direct. Begin with a thirty day baseline audit. Track deviations with heatmaps and timelines. Review them with operators. Adjust or flag. Link every meaningful deviation to an operational fix. Repeat the cycle until a blueprint emerges.

The path is iterative, but the destination is clear. A shop floor that does not merely react but plans strategically. A system that treats monitoring not as surveillance but as intelligence. A workforce that trusts the evidence and uses it to improve. This is the promise of strategic pattern monitoring.

‍
